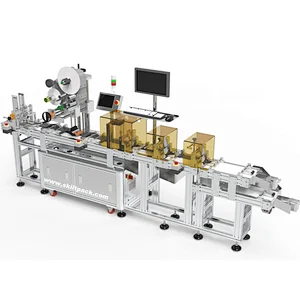

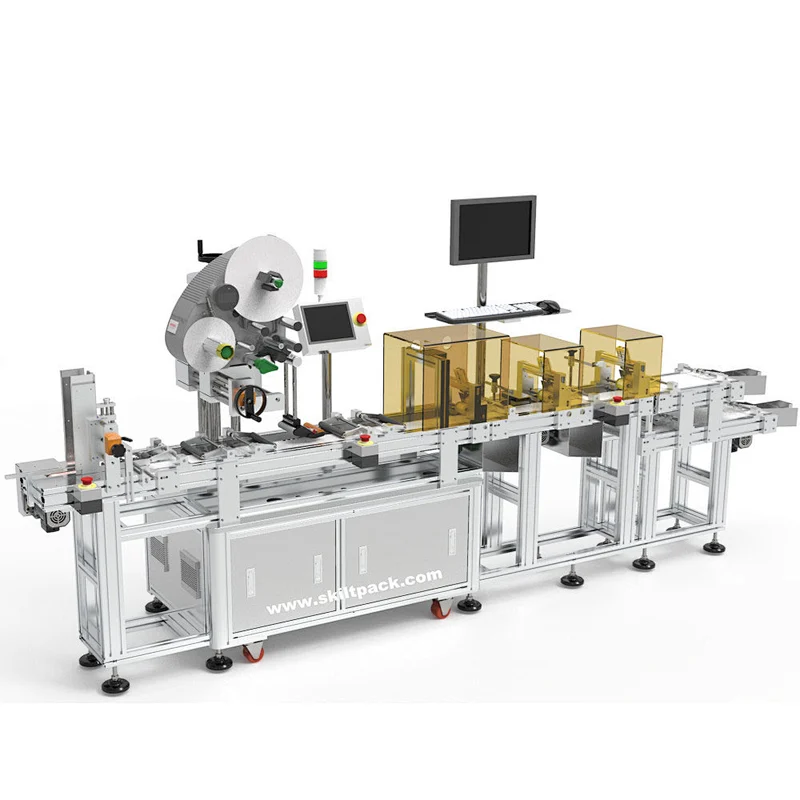

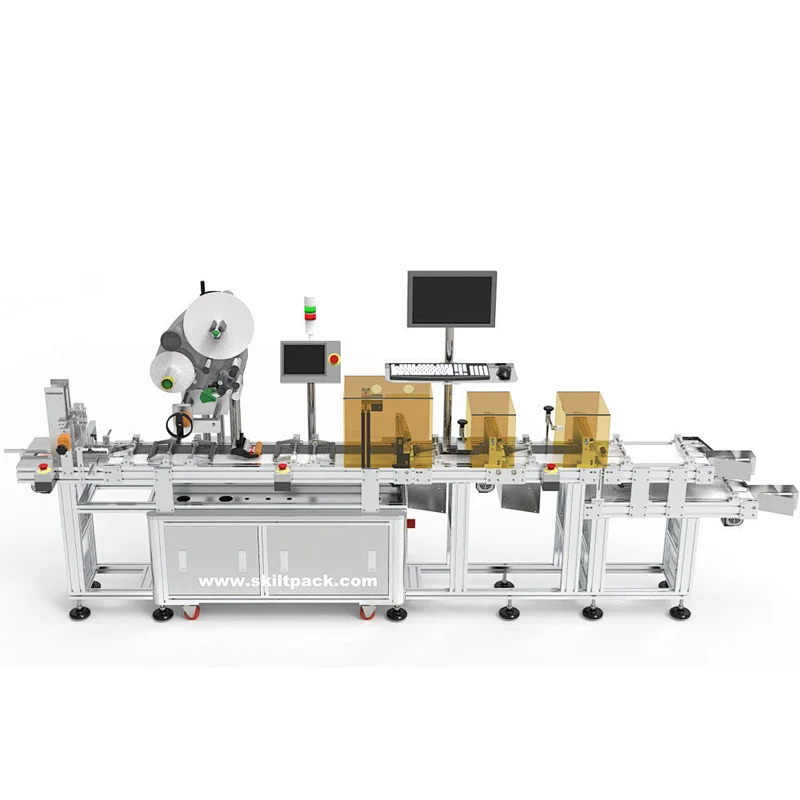

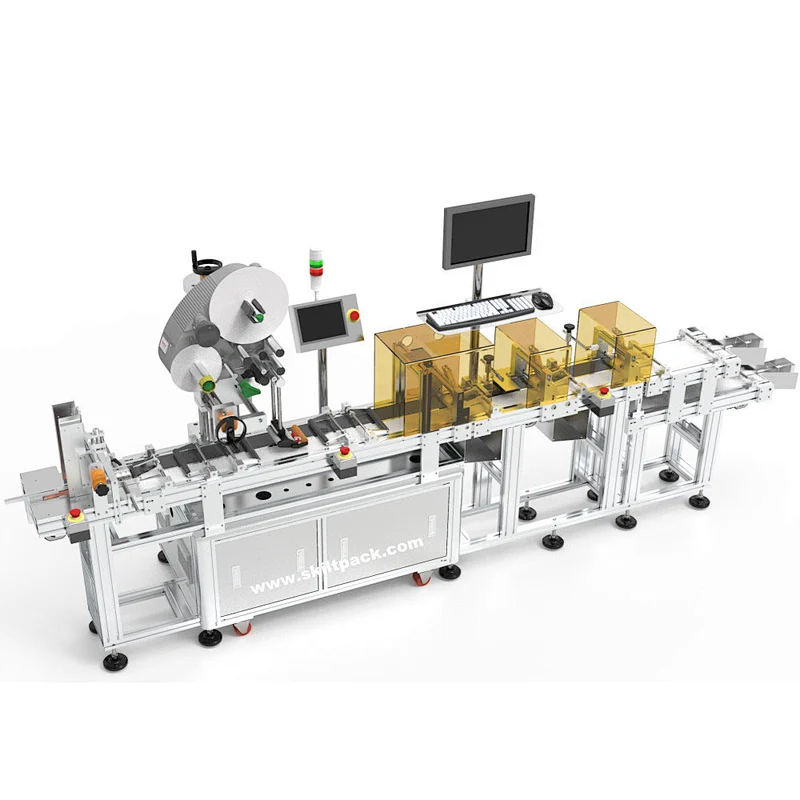

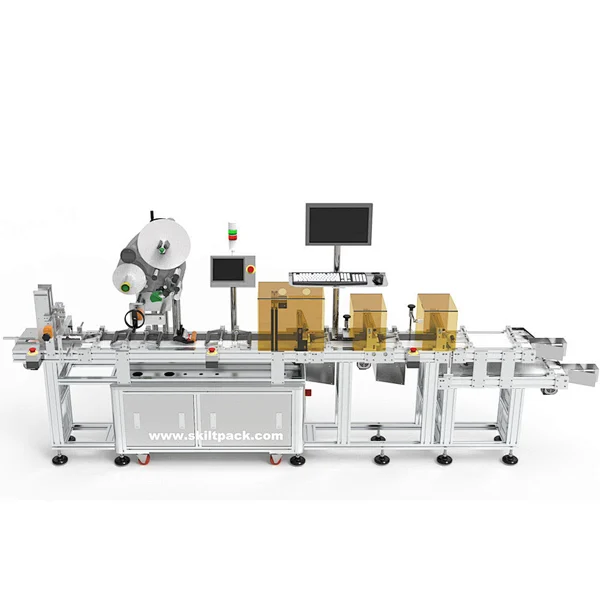

SKILT Cloth hang tag labeling machine,label applicator

Detail
Function
Videos

SKILT tag label applicator have made for Nike, Adidas, Levis, Muji, UA, ZARA, CK project, for more information, Pls ref case .

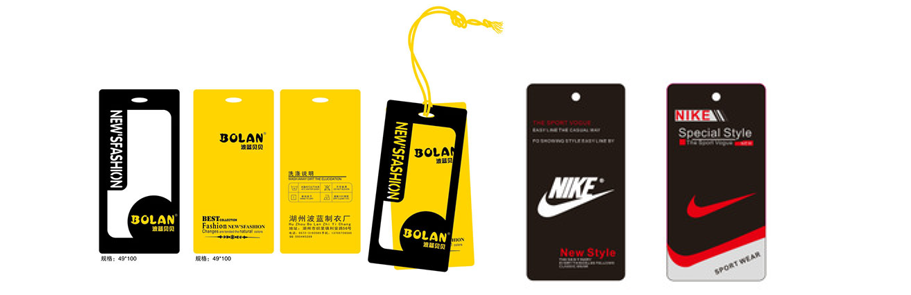

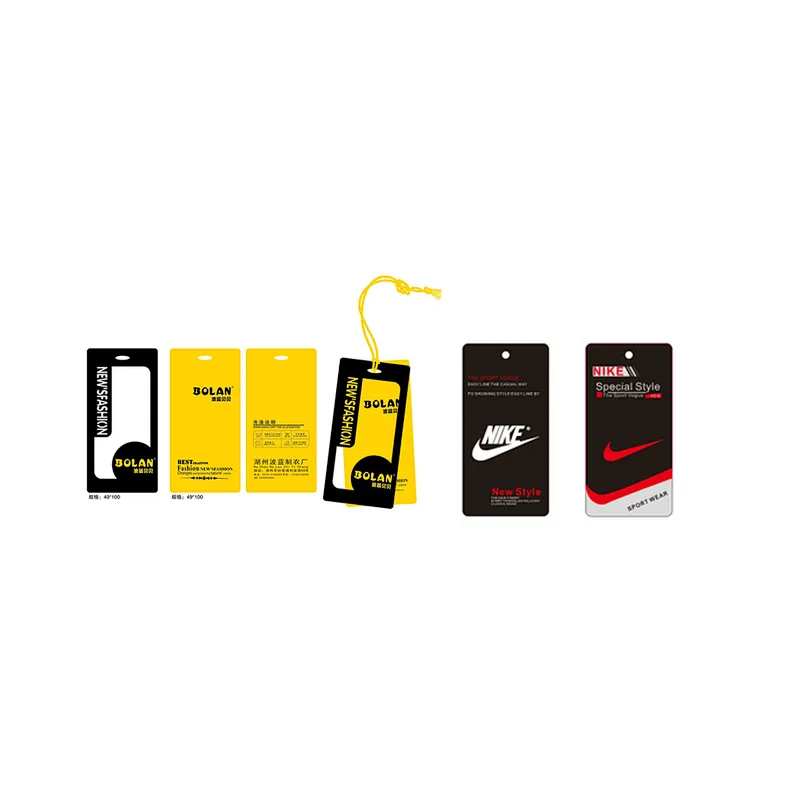

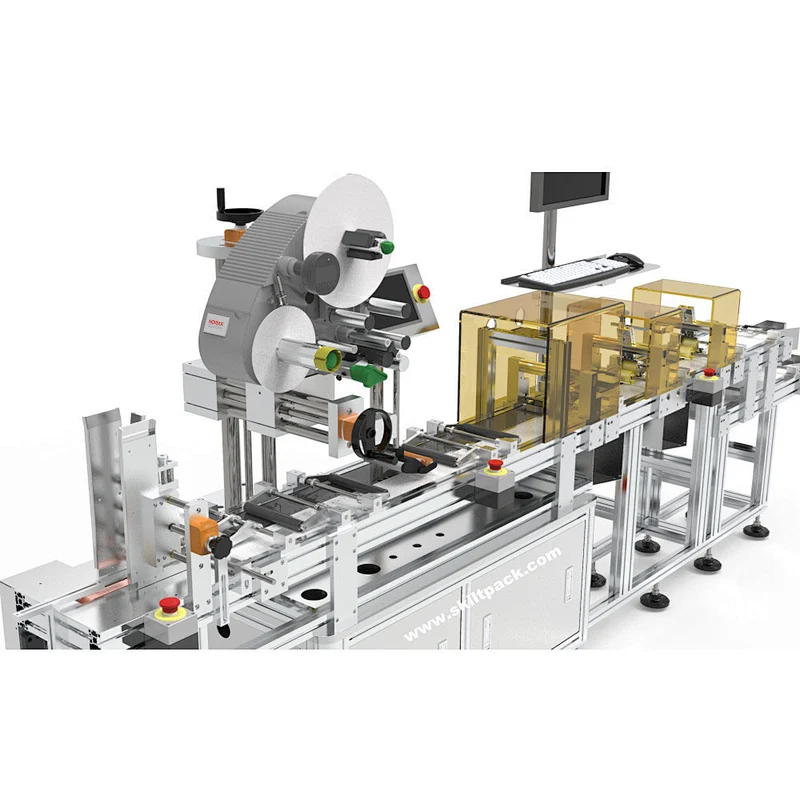

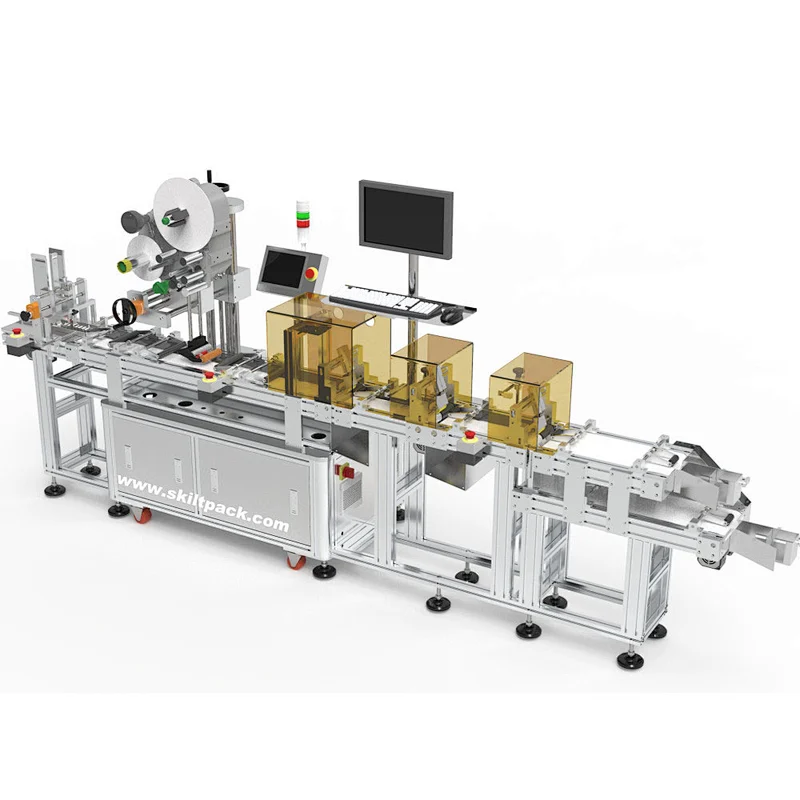

hang tag labeling machine l tag label applicator

PARAMETER

Model	PM-DPM-ALS204
Driving Model	German NOVEXX ALS204
Label material	Self-adhesive sticker, opaque or transparent label
Yield（pcs/min）	80-400pcs/min
Suitable label size	L:10-300mm，H:10-250mm
Suitable tag size	L: 30-300mm , W:30-200mm
Voltage	110V/220V/380V
Machine size	3500（L）× 800(W)× 1600 (H) mm

CONFIGURATION

No	Name	Brand
1	PLC & Touch screen	SIEMENS
2	Labeling engine control system	German NOVEXX
3	Check labeling objects sensor	Japan KEYENCE
4	Check label sensor	German Leuze
5	Main transport motor	German JSCC
6	Frequency converter	DELTA
7	Barcode recognition	MATRIX
8	Visual inspection Smart camera	BAUMER
9	RFID detection	IMPRINJ

MACHINE FUNCTION INTRODUCTION

1. Feeder : Paging device, can put about 500pcs tag one time, delivery out one by one；

2. Labeling : When tag delivery to the labeling position, past RFID sticker on tag surface directly;
labeling engine use German Novexx ALS204, for demending 24/7 countinous operation, tandem function for non-stop production , IP65;

3. RFID detection ：If RIFD label on tags can not reading, eliminate substandard tag to the bottom collection box ;

4. Visual Inspection : If labeling accuracy more than ±1mm, eliminate substandard tag to the bottom collection box ;

5. #1 collection conveyor : With counter function for stack collection ；

6. #2 collection conveyor : When #1 reach to the counter number, will auto switch to the #2 conveyor , convenient for worker take tags out.
