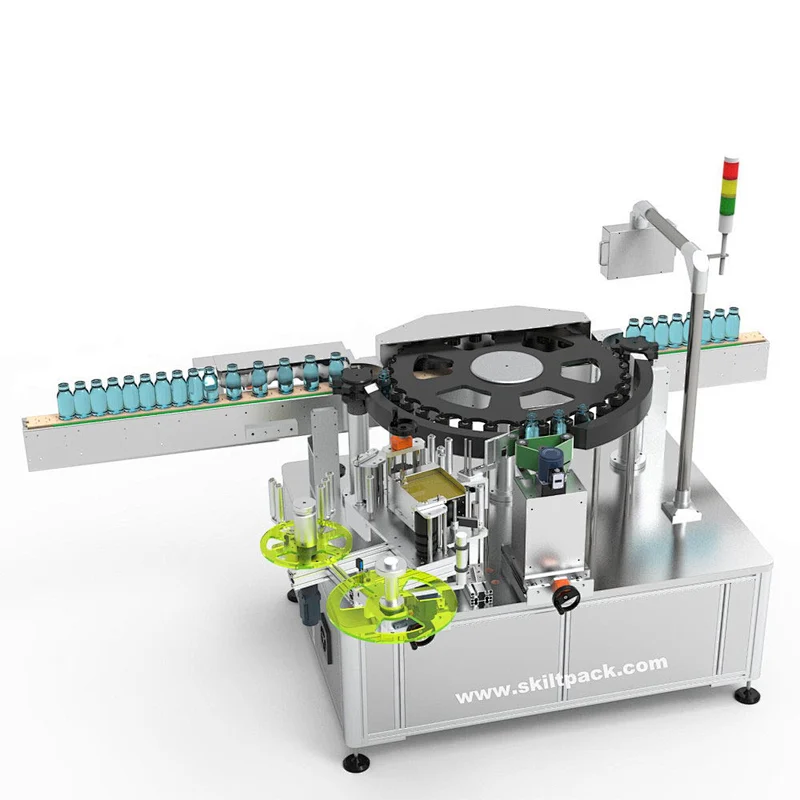

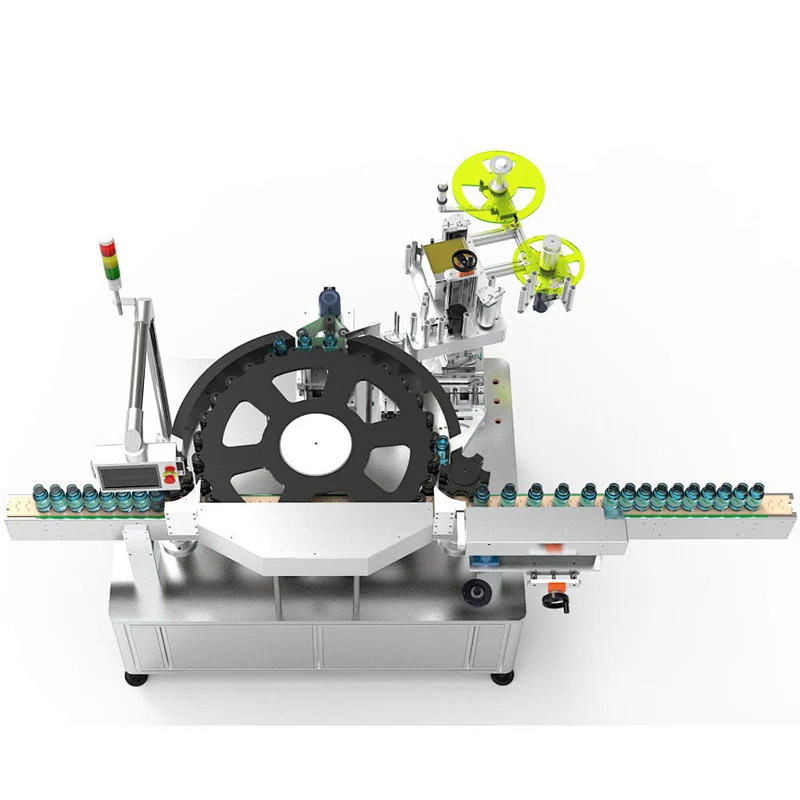

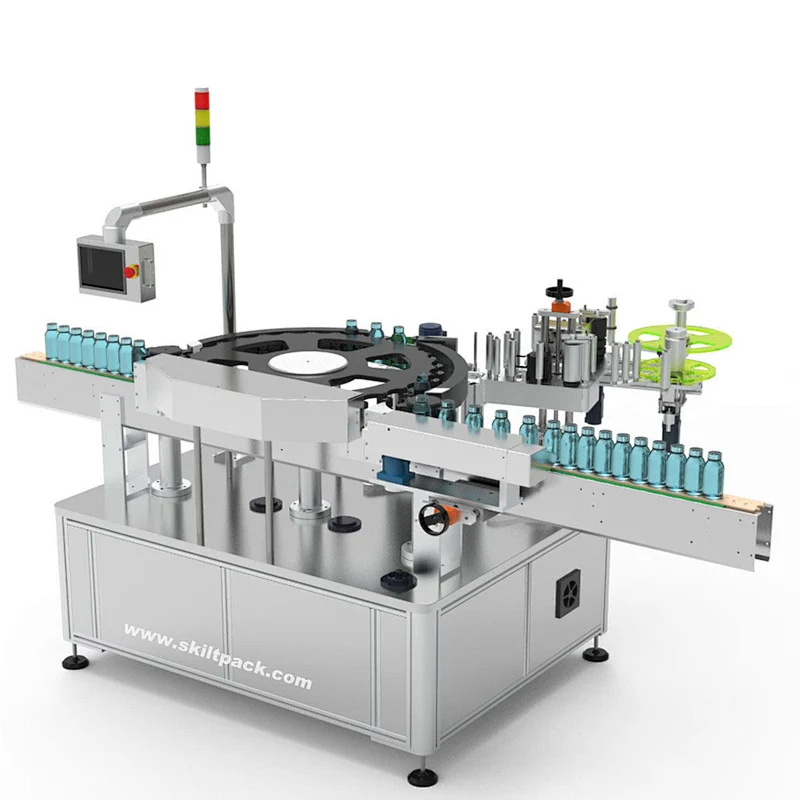

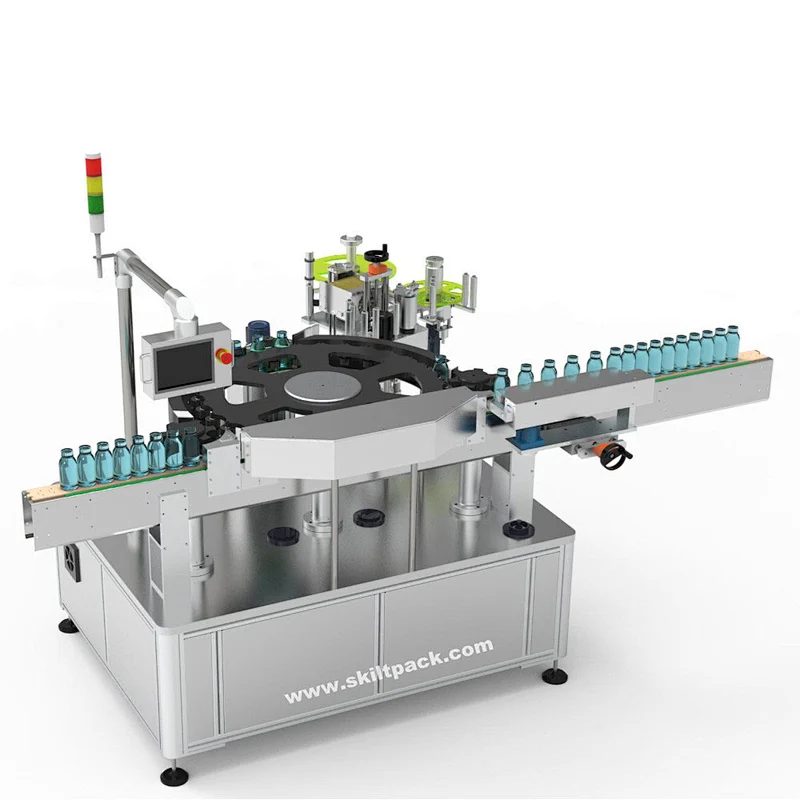

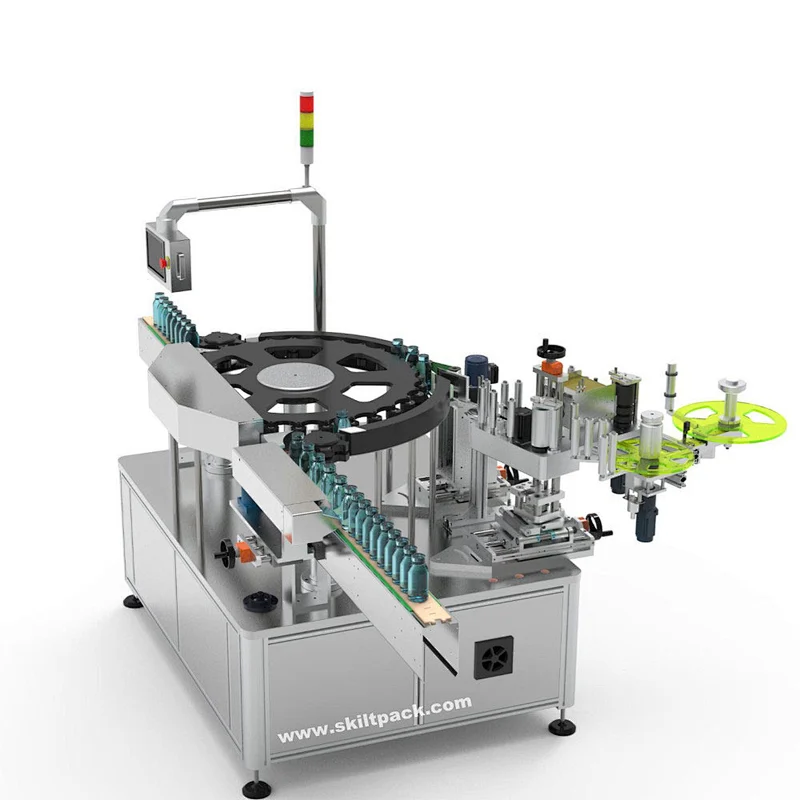

Round bottle Vial high speed labeling machine

High performance wrap-around labeling system l Vial labeling

With the continuously rotating starwheel, up to 500 pcs/min can be labeled.

Infeeder and Outfeeder Rotary table in different size ;
Check or rejection of fallen products ;
Code checking function ;

Technical Date

Model	PLM-HZ-A and PLM-HZ-B

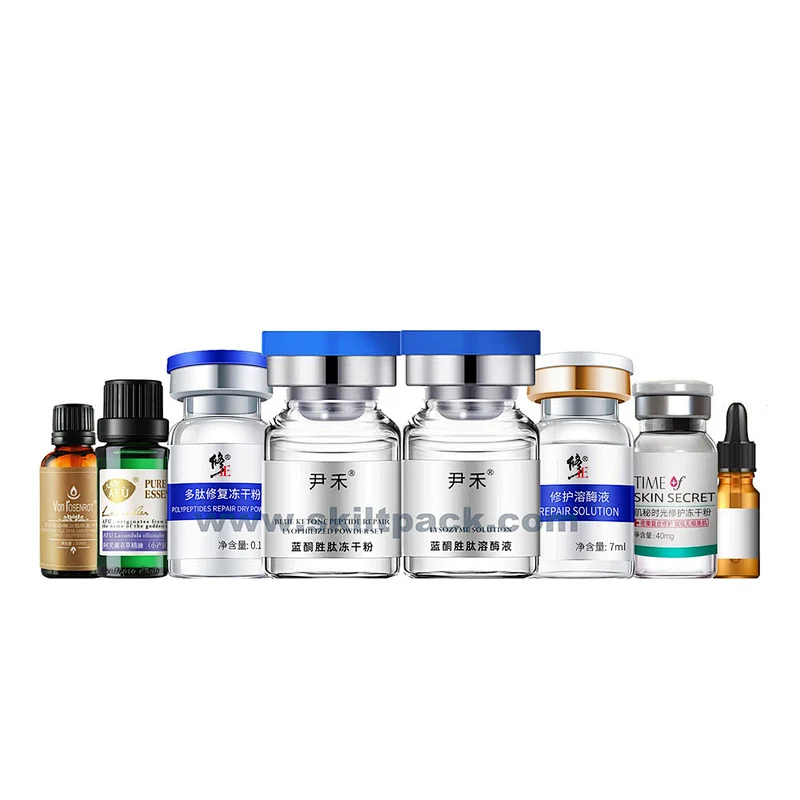

Product specifications:	Cylindrical,vial,Ampoule
Driving Model	Servo system & German Novexx
Labeling way	Rotary way
Label material	Self-adhesive sticker, opaque or transparent label
Printers	Various hot-foil, thermal transfer and laser printers (optional)
Yield（pcs/min）	100-500pcs/min
Suitable label size	L:10-300mm，H:10-200mm
Suitable bottle size	Diameter: 20-100mm
Voltage	110V/220V/380V
Machine size	2400（L）× 1600(W)× 1600 (H) mm

Machine Main Configuration
