Important issues for seal and tamper-evident labeling l L Shape U Shape Stamp Label applicator
In addition to the duties of providing information and identifying the product, labels are increasingly assuming special functions.
Closing or sealing packages is certainly among the most important roles. An increasing number of medications, for example,
require that tamper-evident devices be applied, possibly in the form of a label.

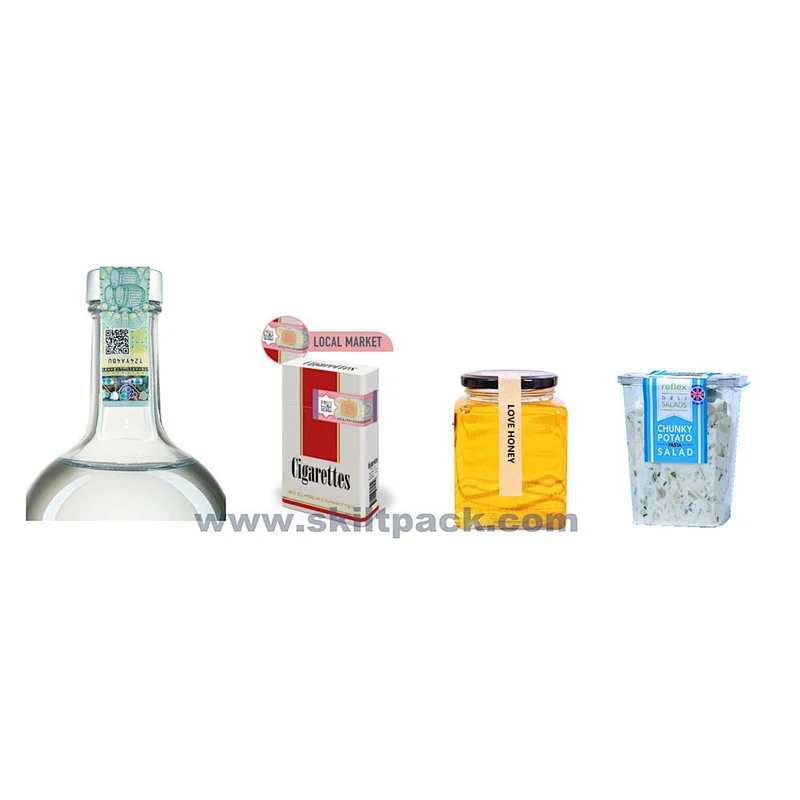

Labels also play an important role in the convenience food trend, which includes baked goods, sandwiches, sushi boxes, fruit cocktails, confectionery and so on.
They contain important variable information about the ingredients, expiration date or weight.At the same time, they securely seal the packaging.
In all such cases, the labels generally need to be applied over one or more edges.
For that reason, the technology is not only called tamper-evident or seal labeling, but also over-corner labeling or L, C or U labeling.
SKILT provides a variety of innovative solutions for this area of application, which also take the very special requirements for
harmaceutical labeling and food applications into consideration.
With application as follow :
Technical Date
| Model | DPM-S |
| Driving Mode | Servo control system & German NOVEXX |
| Yield(pcs/min) | 30-120 |
| Suitable label size | W: 10-150 mm L: 10-300 mm |
| Suitable labeling object size | L: 40-380mm , H:40-350mm |
| Machine use air | 5kg/cm ² |
| Machine size | 1800(L) 800 (W) 1300 (H) mm |
Configuration
| No | Name | Brand |
| 1 | PLC & Touch screen | SIEMENS |
| 2 | Labeling engine control system | German NOVEXX & PANISONIC |
| 3 | Sensor (check labeling objects) | Japan KEYENCE |
| 4 | Sensor (check label) | German LEUZE |
| 5 | Inverter | DELTA |

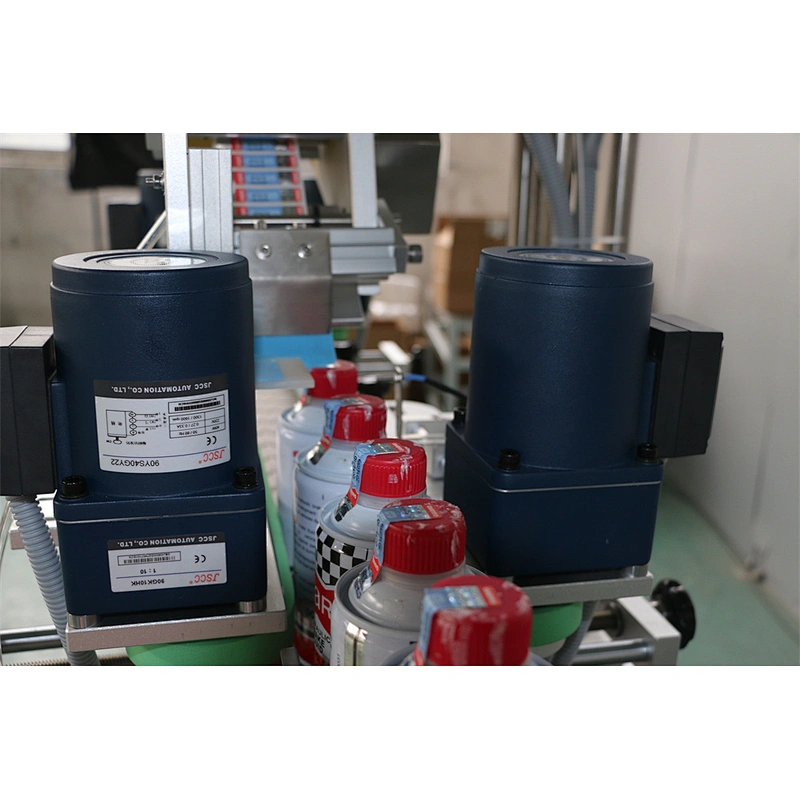

| 6 | Conveyor motor | German JSCC |
