tube labeling machine l ampoule labeling

SKILT Unique Horizontal Labeling Solution

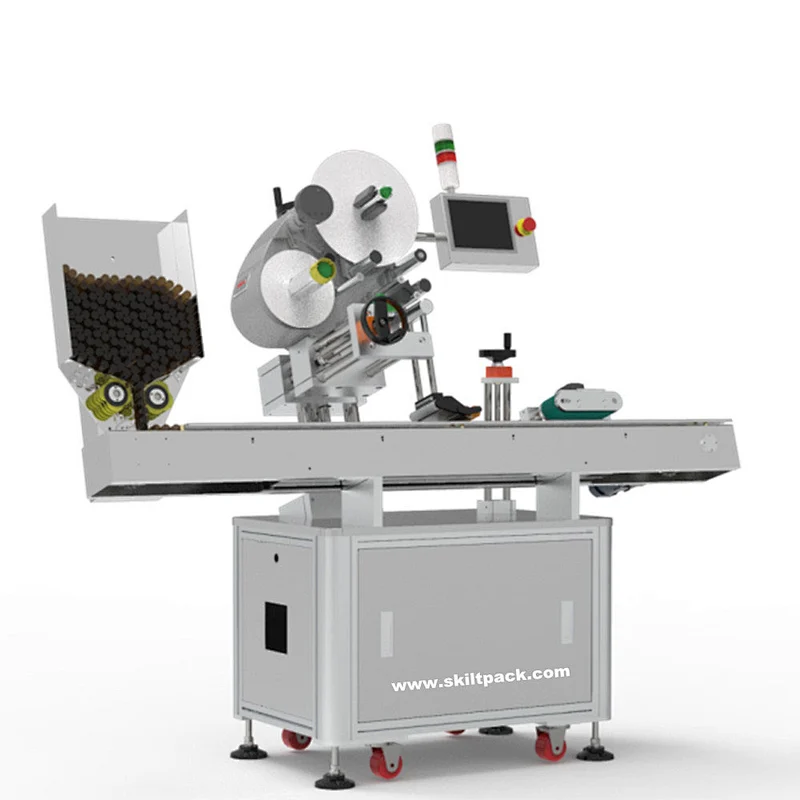

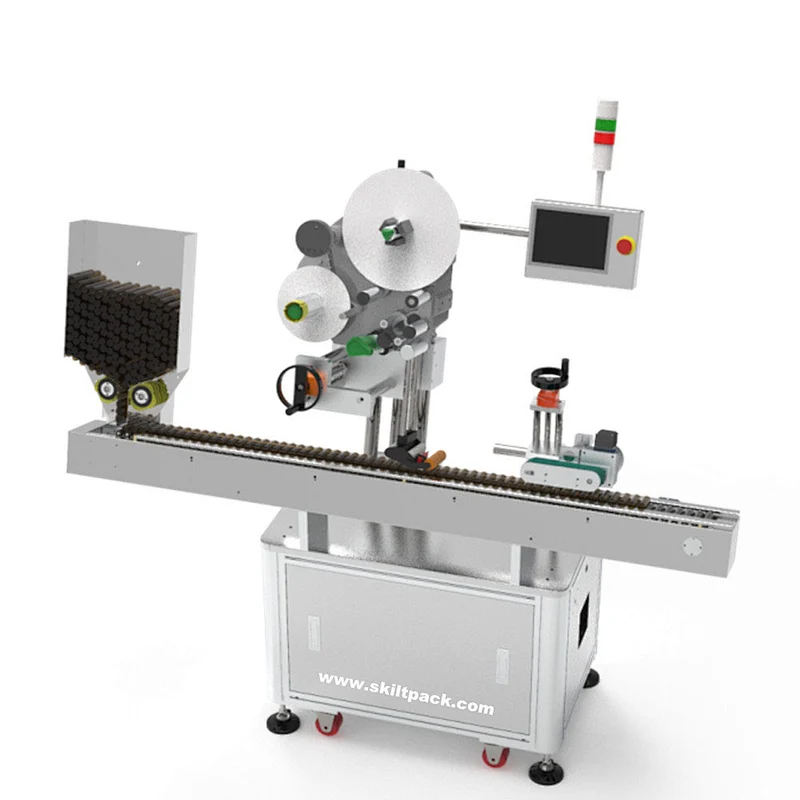

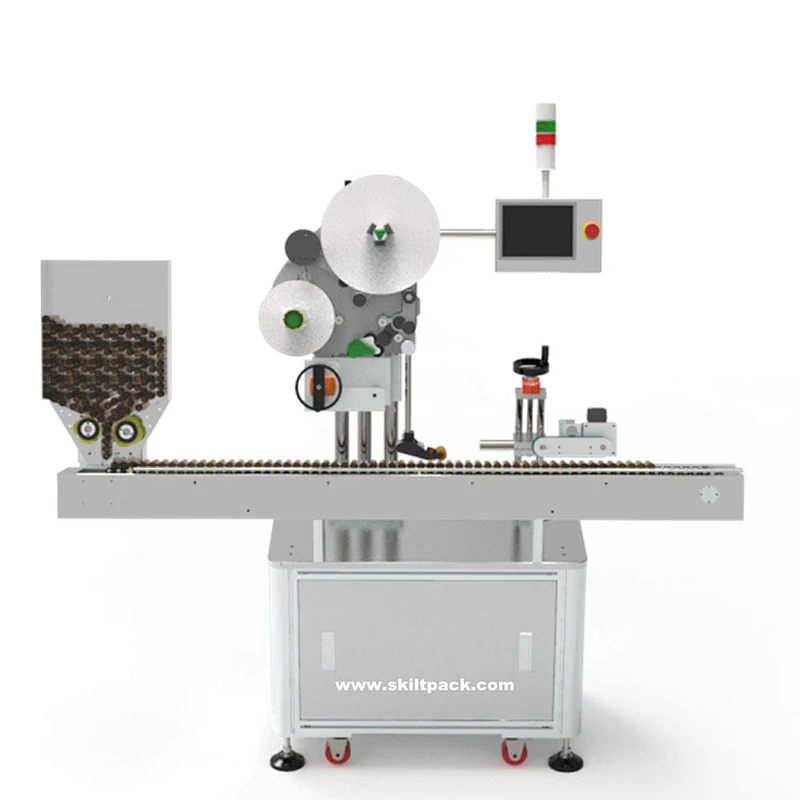

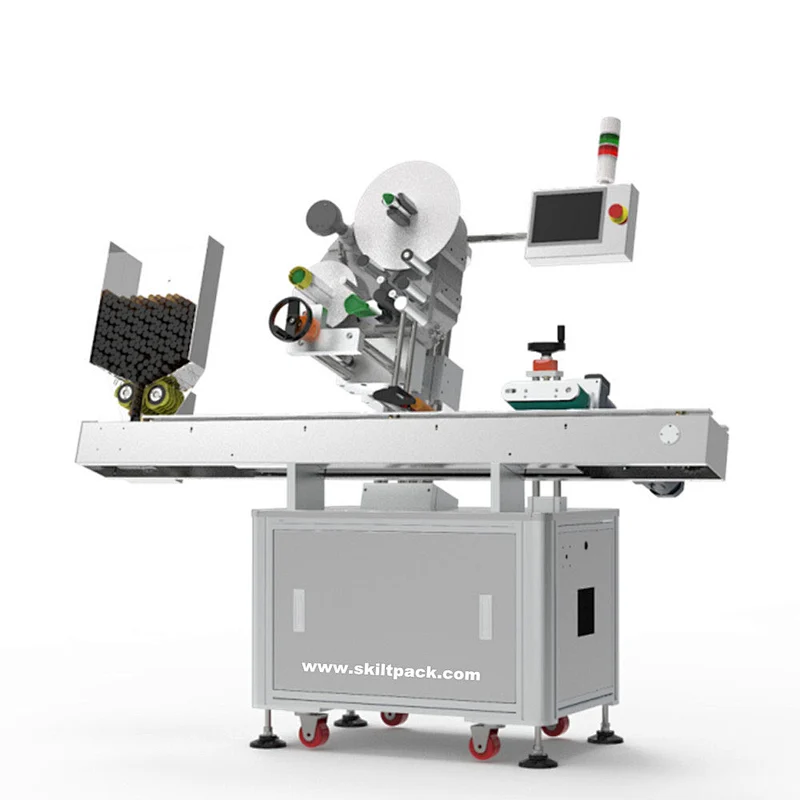

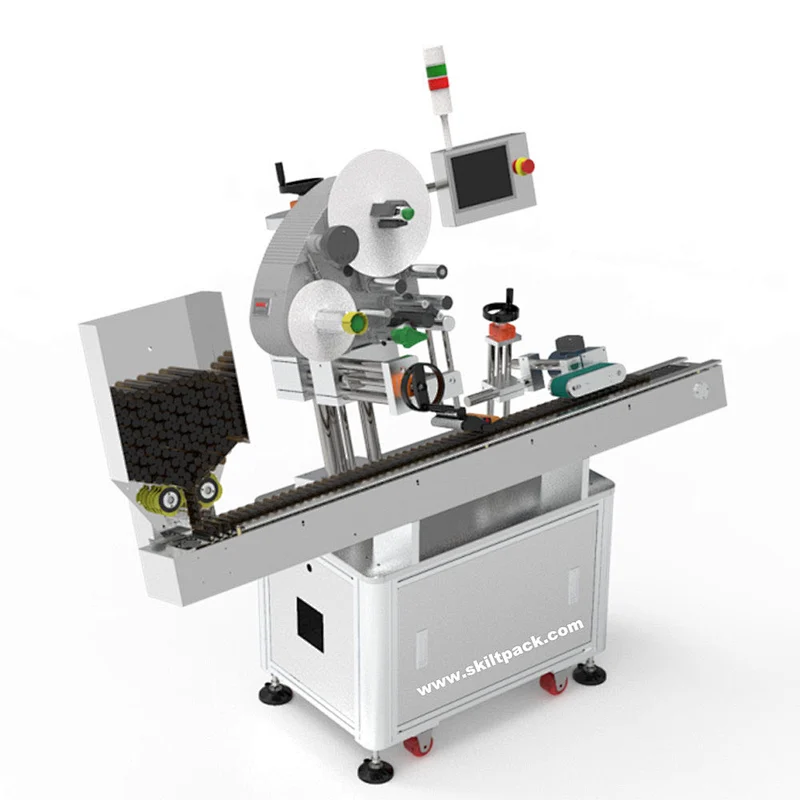

PWM Series horizontal wrap around automatic labeling machine suit for slim objects, such as ampoule,tubes,pens,syringes and lipsticks.

Machine Features

（1）Has few moving parts, adjustments are easily made, changeovers easy.

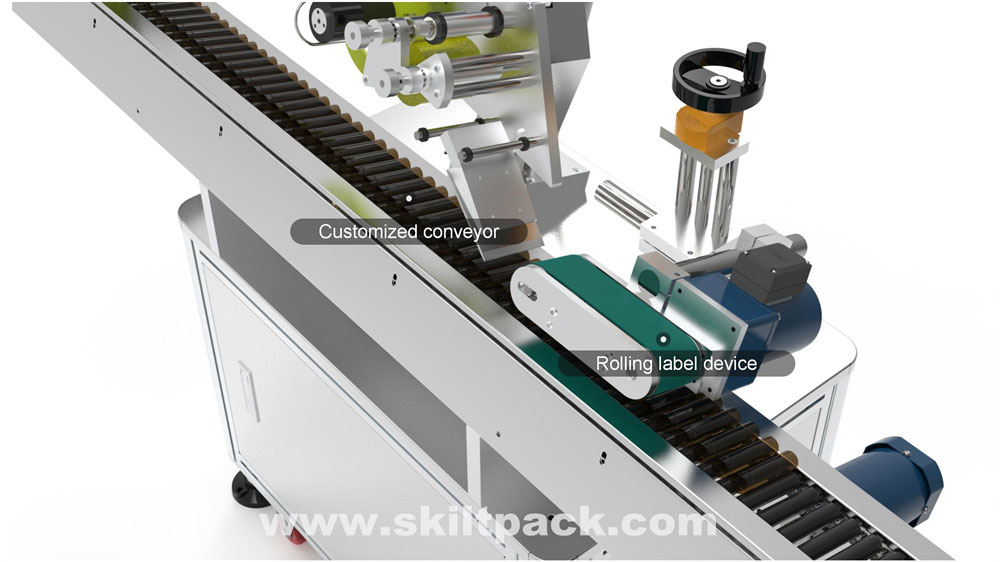

（2）Angled roller conveyor made depends on labeling objects shape and size, ensures labeling accuracy.

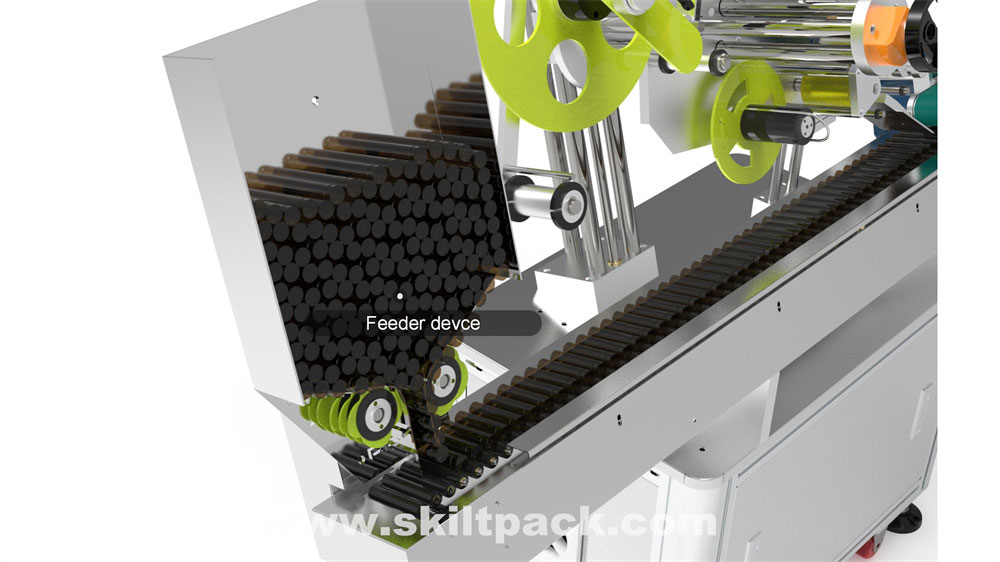

（3）Auto feeder design and slanted conveyor made from special engineering plastic roller, potential damage to fragile containers are minimized.

（4）Printer device optional, printing date and batch number on labels directly.

Technical Date

Model	PWM-A & PWM-ALS204

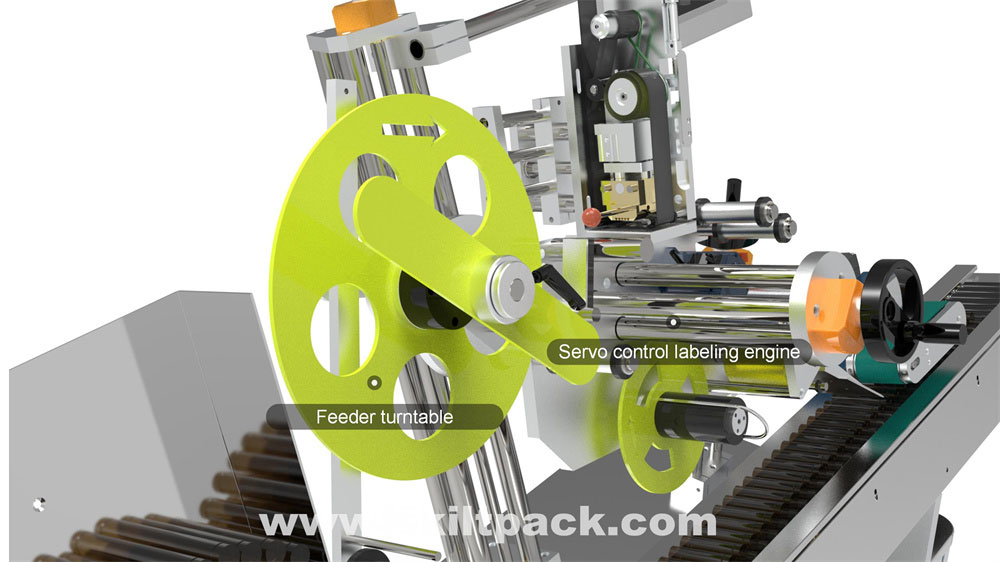

Driving Model	Servo system & German Novexx
Labeling way	Horizontal way
Label material	Self-adhesive sticker, opaque or transparent label
Yield（pcs/min）	50-400pcs/min
Suitable label size	L:10-100mm，H:10-150mm
Suitable labeling objects size	Diameter: 10-30mm
Voltage	110V/220V/380V

Machine Main Configuration

No	Name	Brand

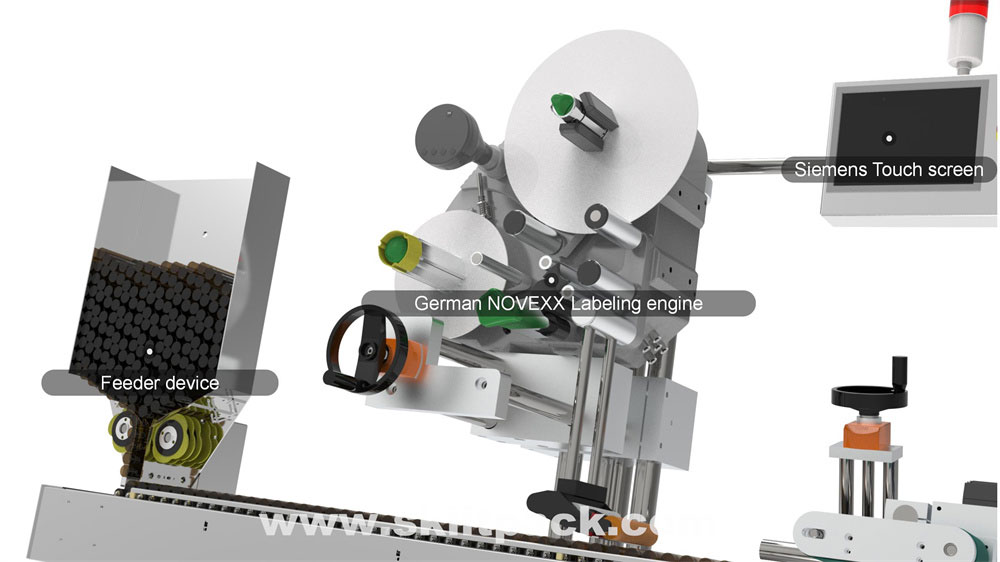

1	PLC & Touch screen	SIEMENS
2	Labeling engine control system	PANISONIC & German NOVEXX
3	Check labeling object sensor	Japan KEYENCE
4	Check opaque label sensor	German Leuze
5	Main transport motor	GERMAN jscc
6	Frequency converter	DELTA
