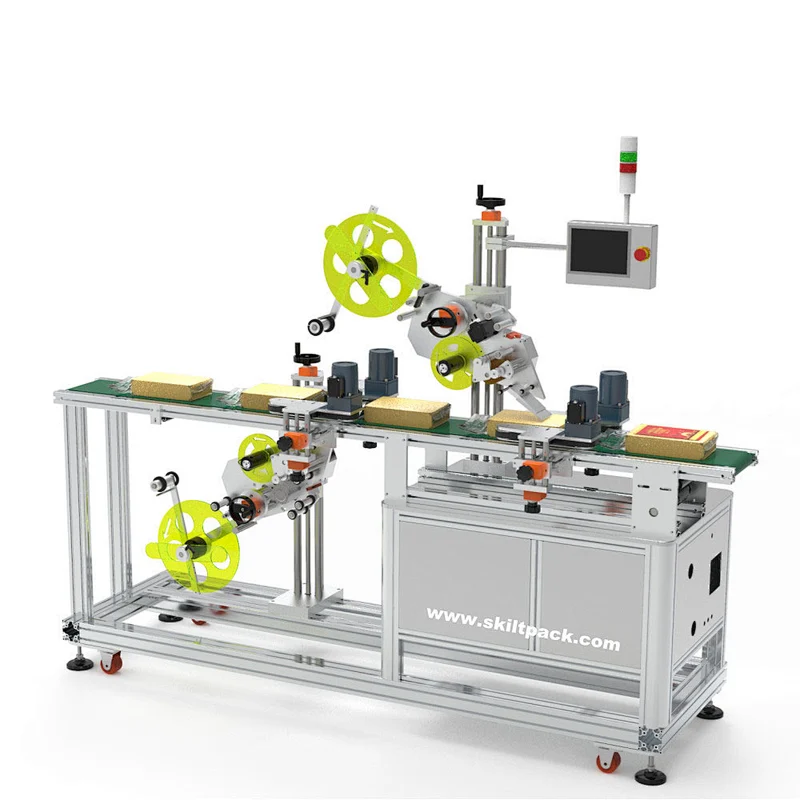

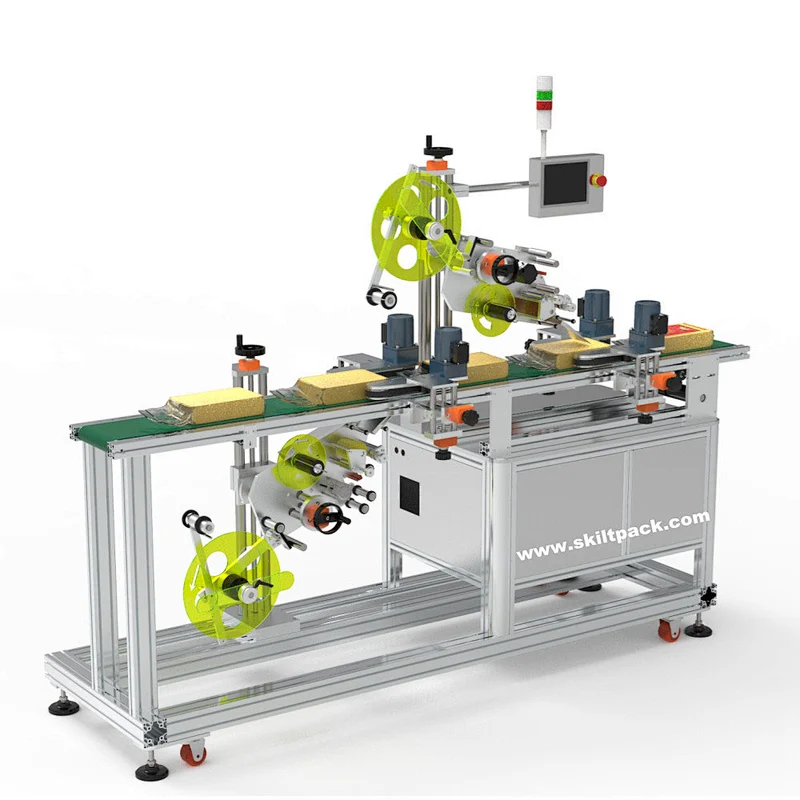

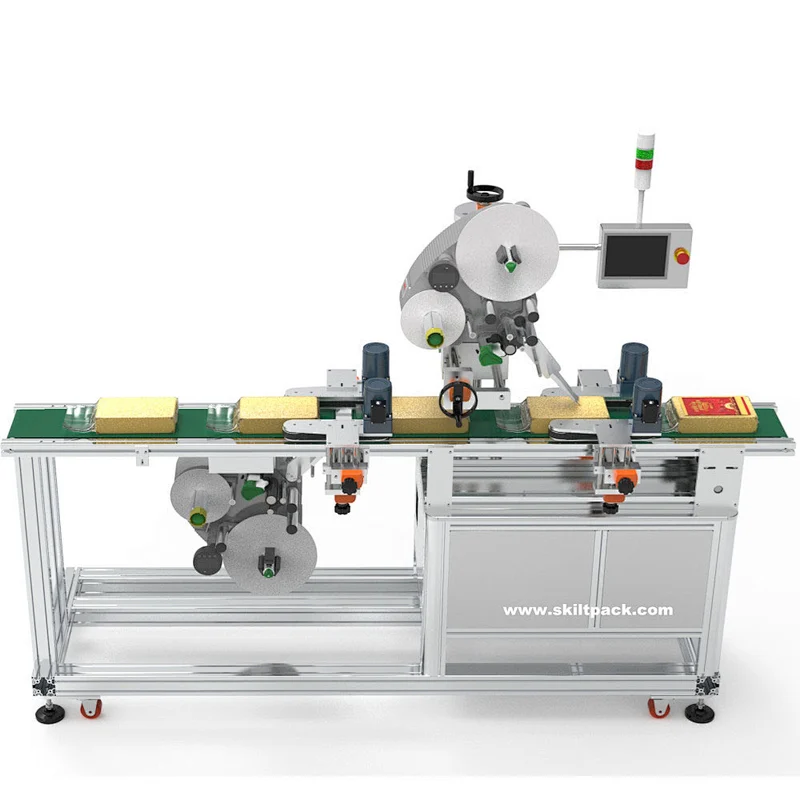

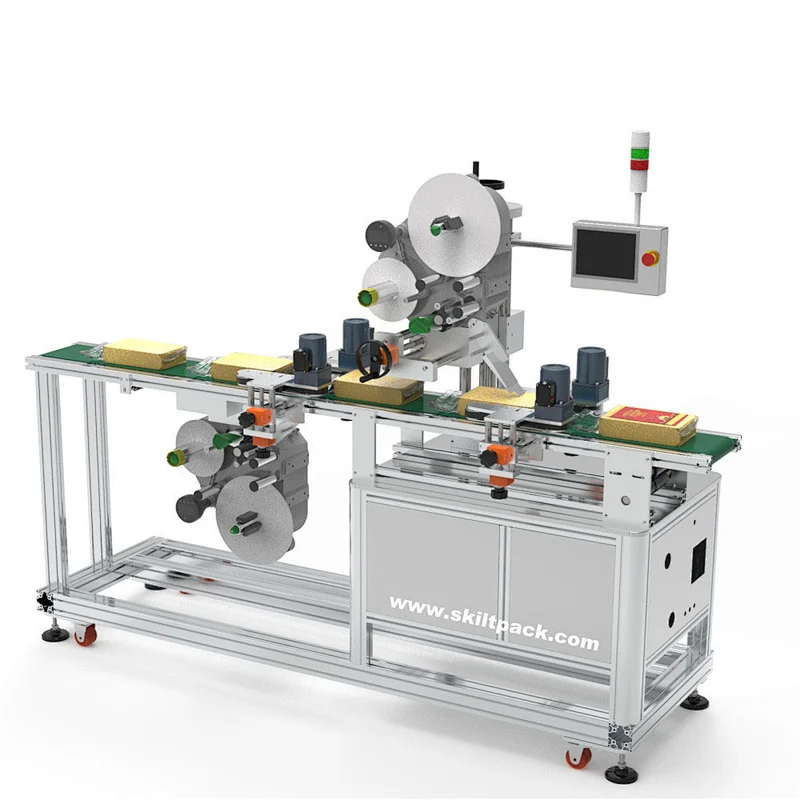

Top&bottom labeler

SKILT Top & bottom labeler l Top & bottom label applicator

Labeling type : Top labeling • bottom labeling • top & bottom labeling

Application as client use :

Food : Nut box top bottle labeling machine,food tray top bottle labeling machine,bag top bottom labeling machine ;
Daily chemical：Eye shadow box，round jars top bottome labeling machine；


Machine Advantage :

Two-in-one labeling solution,makes the UDPM particularly efficient and productive ;
A variety of optional modules for any labeling task ;
Top and bottom labeling in one cycle ;
Easy to integrate into any kind of production line ;
Extremely efficient and highly productive ;
Space-saving, compact and hugely versatile ;
Also suitable for top or bottom labeling only ;

Machine Features :

The SKILT model UDPM-A It retains all the benefits of top and bottom labeling machines,
but remains compact and highly flexible when used with two labeling engine units.
It delivers the best labeling results and can also be used to provide top or bottom labeling only if necessary.
The new benchmarks in quality, precision and efficiency, and can also be customized based on our modular system.
Naturally, it can also be adjusted to different product formats with ease.

Optional:

Transfer plates at infeed and outfeed, moveable version, digital position indicators ;

Technical Date



Model	UDPM-A  &  UDPM-ALS204
Driving Model	Servo control system & German NOVEXX
Label material	Self-adhesive sticker, opaque or transparent label
Yield（pcs/min）	20-180pcs/min
Suitable label size	L:10-300mm，H:10-300mm
Suitable labeling product size	L: 40-380mm , H:40-350mm
Voltage	110V/220V/380V
Machine size	2200（L）×  800(W) × 1500 (H) mm



Machine Main Configuration



No	Name	Brand
1	PLC and touch screen	SIEMENS
2	Check opaque label	German Leuze
3	Check labeling object sensor	Japan KEYENCE
4	Labeling engine	German NOVEXX & Panisonic
5	Main transport motor	Switzerland ABB
